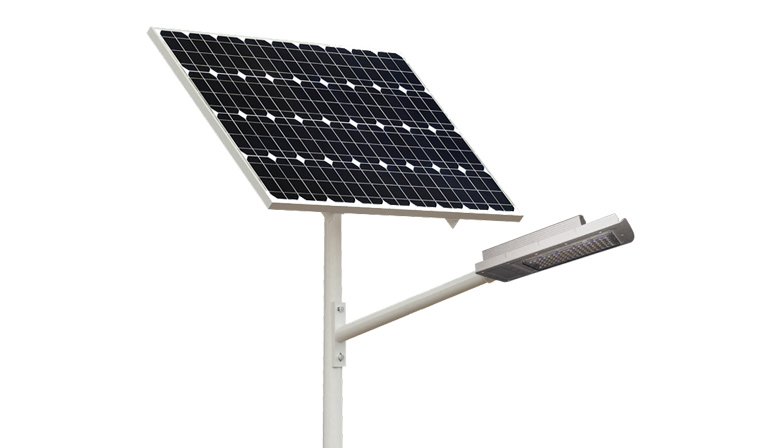

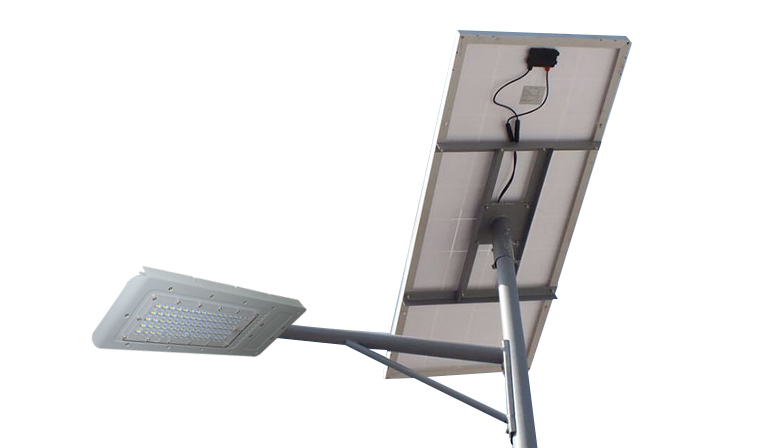

90W solar led street light
IP 66 Solar LED street light 90W
( 5 Years Warranty Solar LED street light )
Features/Benefits
Specifications
Project
Download
- External fashion beautiful, angular, simple and tough
- Light weight, small size, reduce transportation costs and maintenance of capital
- Protection level IP66
- Imported high-brightness light source, high luminous efficiency
- 1060 aluminum cylinder orange powder, powder cross process, breathable Feng sent design, enhance the cooling effect of lamps
- Intelligent adjustable power, lighting time
- Support 50-60m m light repentance, apply more widely
| NO. | Title | Description |
|---|---|---|
| 1 | Name | SSL-1C030D Series Street Light |
| 2 | Model | SSL90 -1C030D |
| 3 | Power | 90W |
| 4 | Input Voltage | DC12-24V |
| 5 | Lighting efficacy | 120LM/W |
| 6 | Beam angle | 75X140 |
| 7 | Waterproof rate | Ip66 |
| 8 | Battery parameters | 160AH 12V battery |
| 9 | Total lumlnous flux | 10800LM |
| 10 | Chip model | OSRAM 3030 |
| 11 | CCT | 6500k |
| 12 | Installation height | 6-8m |
| 13 | Pole diameter | 50~60mm |
| 14 | Operating temperature | -20℃ - 50℃ |
| 15 | Warranty | 5 years |
| 16 | Solar Panel Parameters |
Polysilicon 150W 12V Components Conversion Efficiency > 16% |
