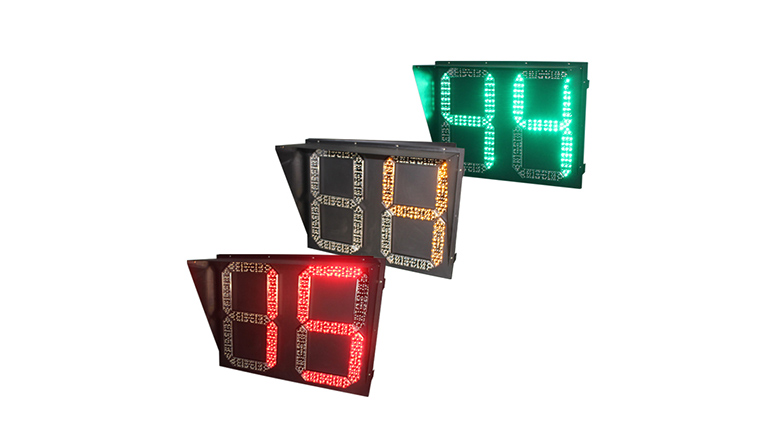

LED countdown timer
Energy-saving three colors LED countdown timer
( 2 Years Warranty countdown timer )
Features/Benefits
Specifications

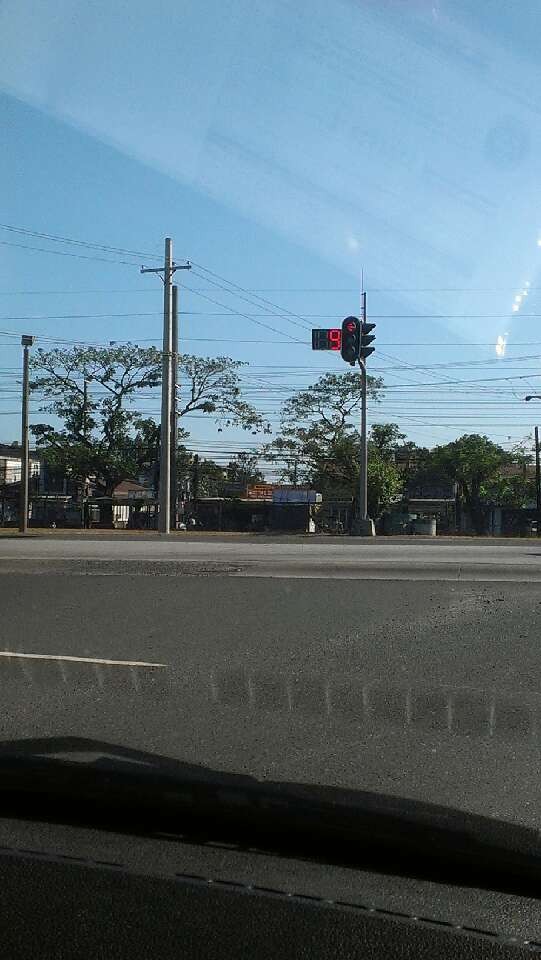

Project
Download
- High brightness LEDs with integrated optics
- Three colors showing the time of red, green and yellow light separately
- LED diodes array scientifically and neatly, uniform brightness and wide view angle
- Easy installation and maintenance
- Moisture and dust tight seal
- Surrounded by sun visor, effectively prevent water& dust
- Color wires with connector for easy connection
- The damage of a single LED diode would not affect the performance of the timer
- Studying mode, can automatically detect the signal phase time and adjust the time displayed accordingly Short learning time, can study the new phase time after one complete cycle
- Energy saving
- Wide working voltage
- Total Harmonic Distortion<20%
- Open door from the mid-front, easy to install and check
| Characteristics | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Color | Size (mm) | Profile | Voltage VDC | LEDs | Typical Wattage at 25℃ | Luminance (cd/㎡) | Typical Dominant Wavelength (nm) |
| NBDJS513-RGY | Red | 500 | square | 12/24VDC 110/220VAC | 490s | <25 | >400 | 625±5 |
| Yellow | 500 | square | 12/24VDC 110/220VAC | 210s | <10 | >400 | 590±5 | |
| Green | 500 | square | 12/24VDC 110/220VAC | 336s | <25 | >400 | 505±2 | |
