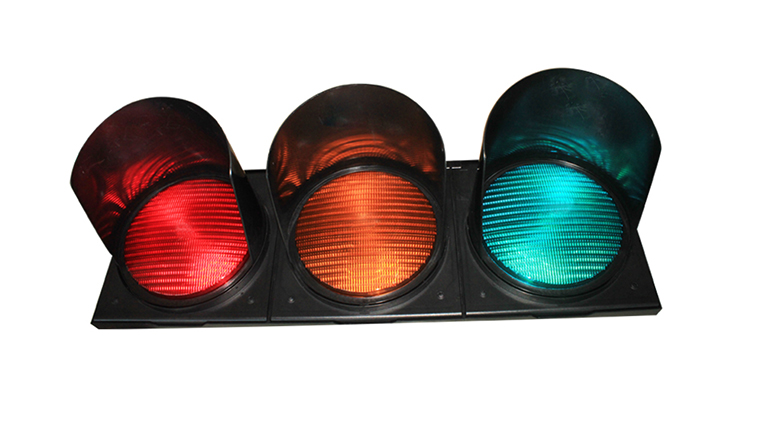

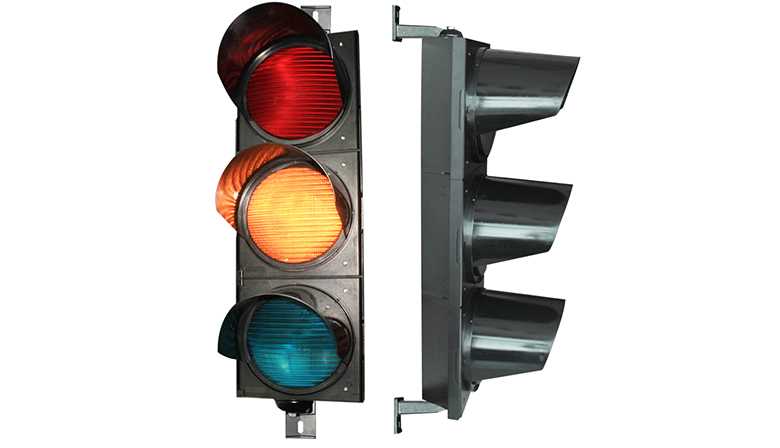

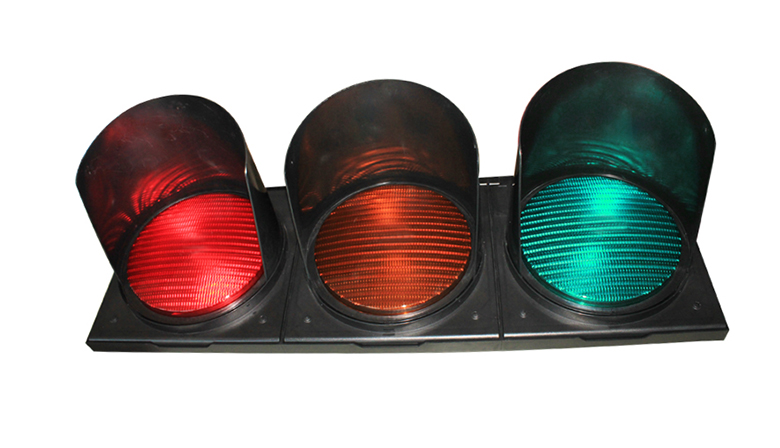

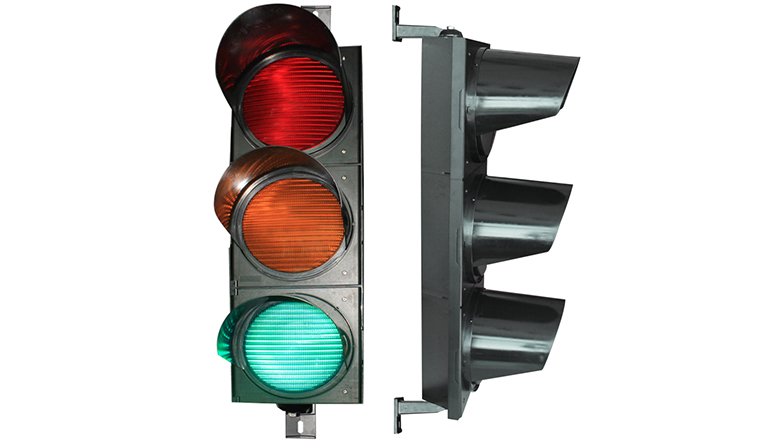

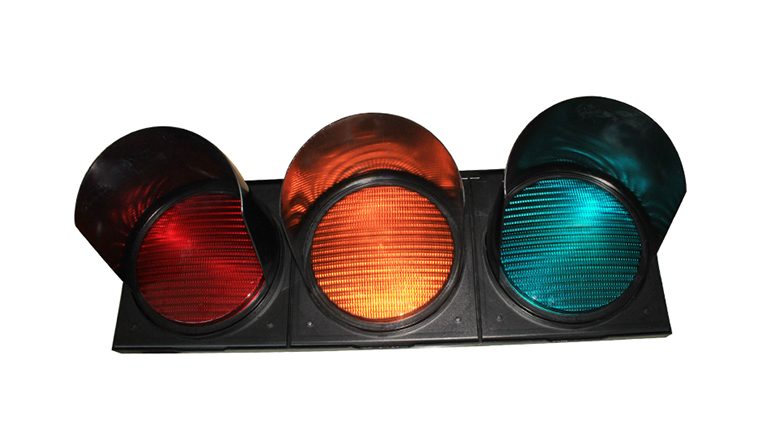

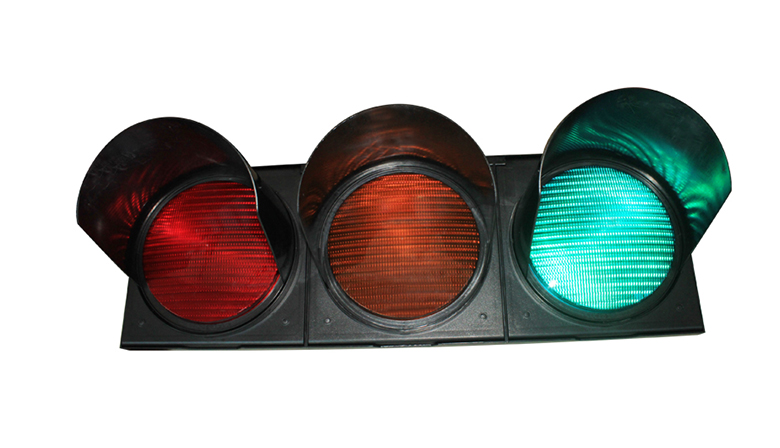

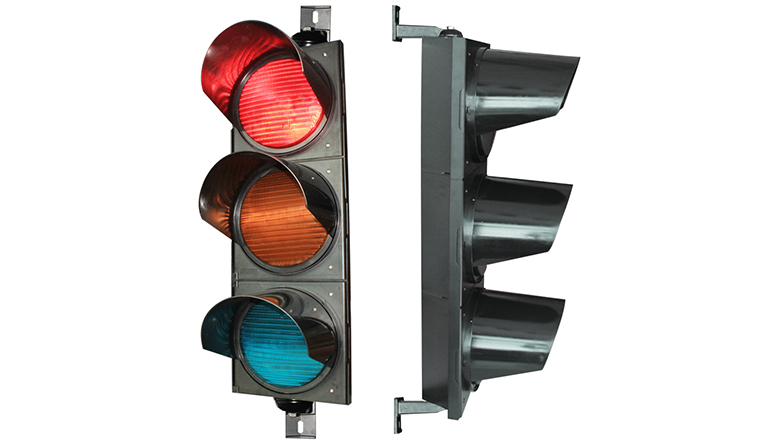

300mm High power LED Traffic Light
300mm High Power LED Traffic Light
( 5 Years Warranty high power traffic light )
Features/Benefits
Specifications
Project
Download
- 5 years warranty
- Component from Japan/USA
- Meet CE, EN12368, standard
- PF>0.9, THD<15
- Super fast turn on, super fast turn off, time less 100ms
- Engery saving
- Working temperature environment: -40℃ ~ +70℃
- LED-based traffic signal modules
- Uniform signal appearance / no LED dots visible
- Custom-made symbol masks on request
- Design minimizes sun phantom effects
- Easy to install into existing signal enclosure
| Model: NBVB313HP 300mm High power LED Traffic Light | |||
|---|---|---|---|
| Items | Parameters | ||
| Size | 300mm | 300mm | 300mm |
| Color | Red | Yellow | Green |
| LEDs (pcs) | 3 | 3 | 3 |
| Wavelength | 625±5 | 590±5 | 505±2 |
| Module shape | Round | Round | Round |
| Power consumption (W) | <9 | <9 | <9 |
| Housing material | PC ( UV-stabilized polycarbonate) | ||
| Voltage (V) | 120VAC/230VAC/12-24VADC | ||
| Lens | tinted len | ||
