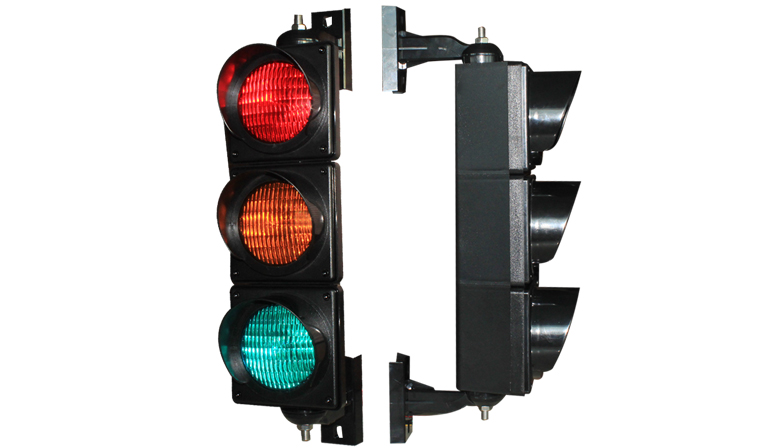

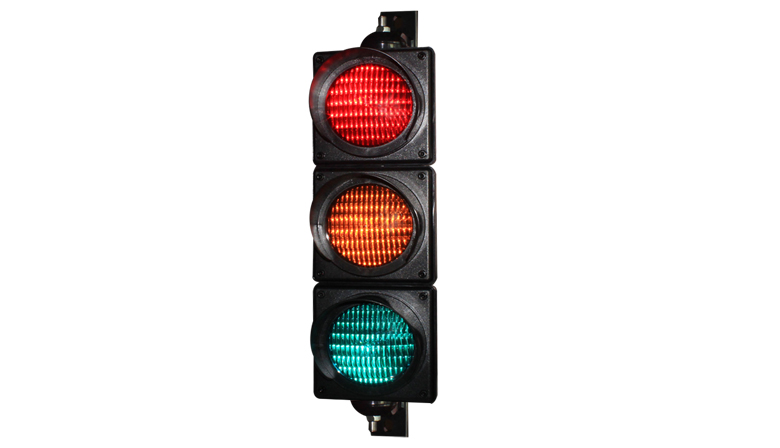

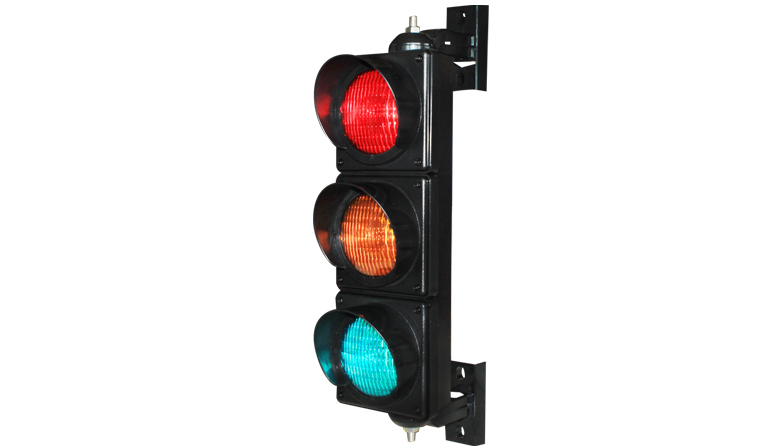

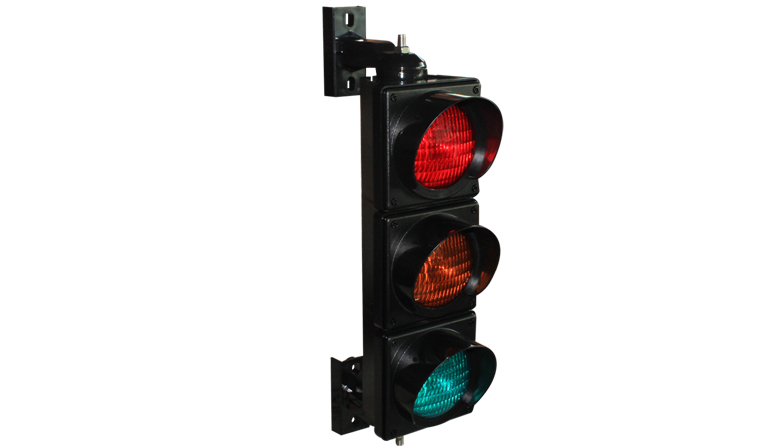

100mm High Power LED Traffic Light
100mm High Power LED Traffic Light
( 5 Years Warranty high power traffic light )
Features/Benefits
Specifications

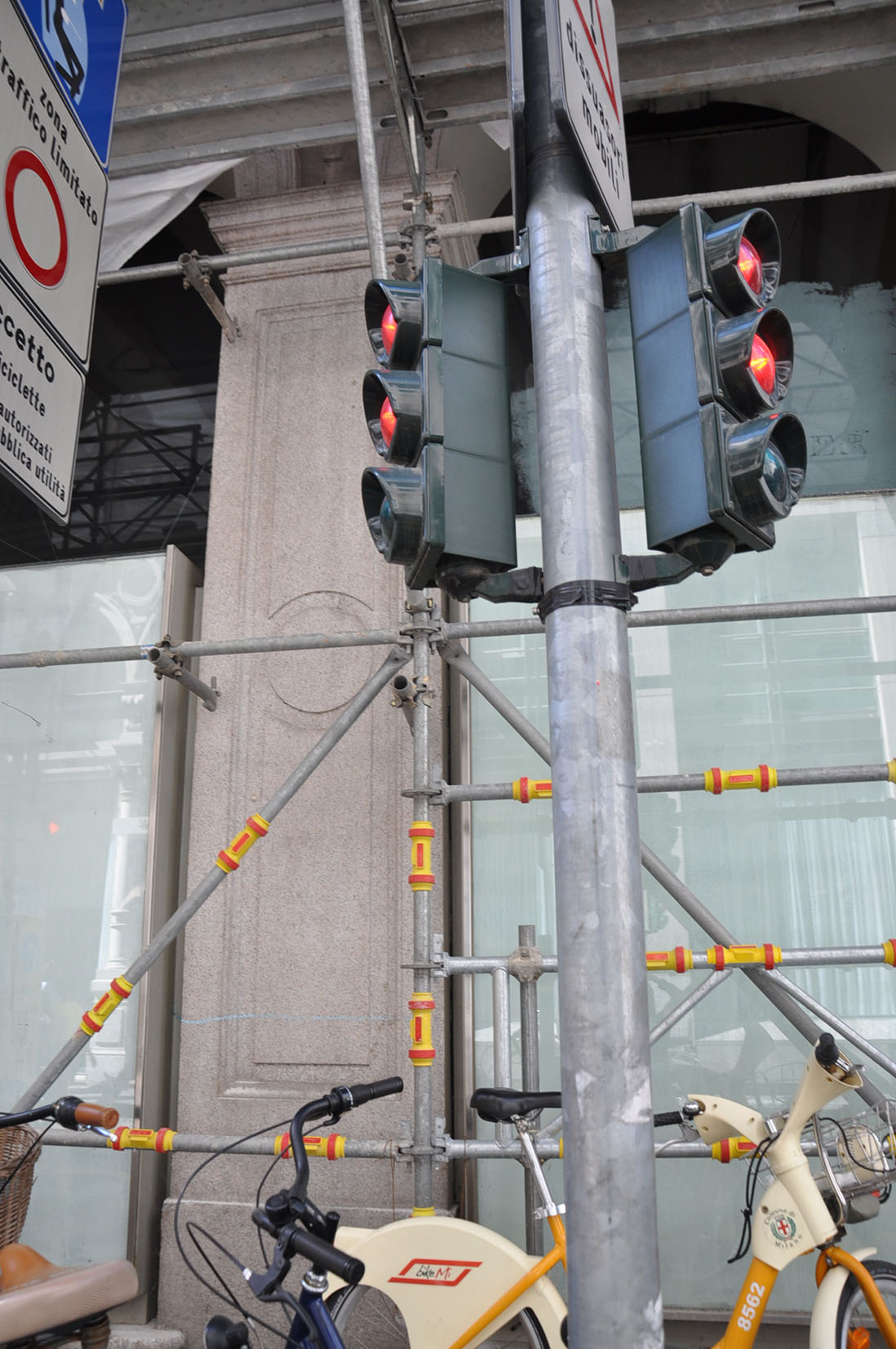

Project
Download
- 5 years warranty
- High flux LED
- Component from Japan/USA
- Meet CE, standard
- PF>0.9, THD<15
- Super fast turn on, super fast turn off, time less 75ms.
- Engery saving
- Working temperature environment:-40℃~+ 70℃
- LED-based traffic signal modules
- Uniform signal appearance / no LED dots visible
- Custom-made symbol masks on request
- Design minimizes sun phantom effects.
- Easy to install into existing signal enclosure.
| Items | NBVB113HP-V1/V2/V9 100mm High Power LED Traffic Light | ||
| Size | 100mm(4’) | 100mm(4’) | 100mm(4’) |
| Color | Red | Amber | Green |
| LEDs (pcs) | 1 | 1 | 1 |
| Luminance (cd) | >100 | >100 | >100 |
| Module shape | Round | Round | Round |
| Power consumption (W) | >5 | >5 | >5 |
| Typical Dominant Wavelength(mm) | 625 | 590 | 502 |
| Housing material | PC ( UV-stabilized polycarbonate) | ||
| Cover Shape | tinted Cobweb len | ||
| Voltage (V) | 120VAC or 230VAC or 12-24V DC | ||
| Power Factor | >0.9 | ||
| Operating temperature (℃） | -40℃~+ 70 ℃ | ||
| Insulation resistance | ≥2M | ||
| Total harmonic distortion | <20% | ||
| IP rate | IP65 | ||
