Traffic Control Solution Provider
Traffic camera detector
video camera detection
( 2 Years Warranty Traffic camera detector )
Features/Benefits
Specifications
Project
Download
-
Traffic Camera Detector Features & Benefits

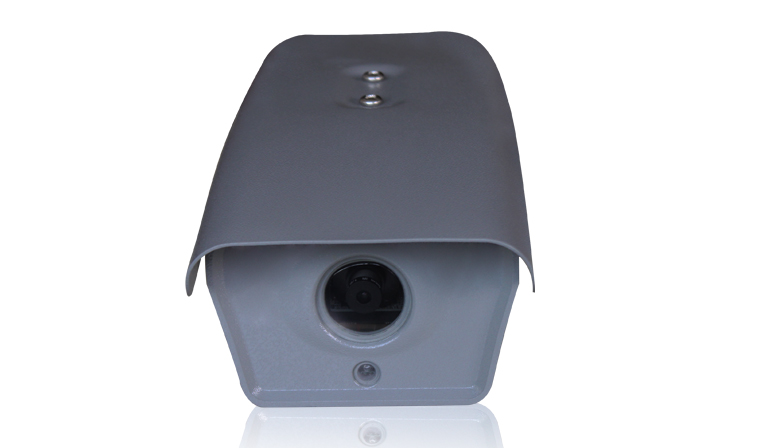

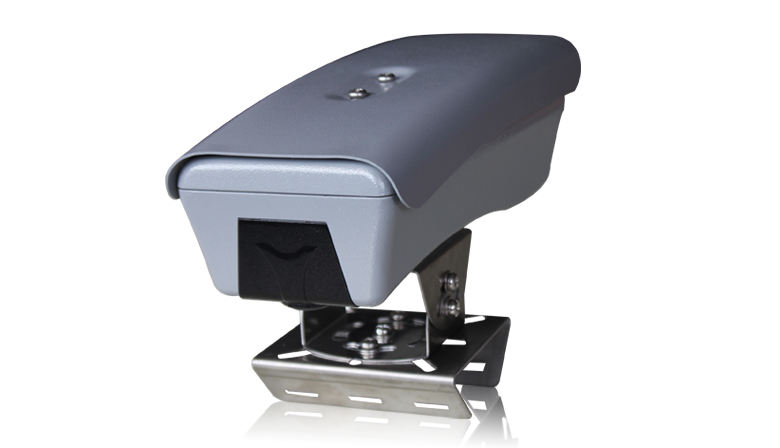

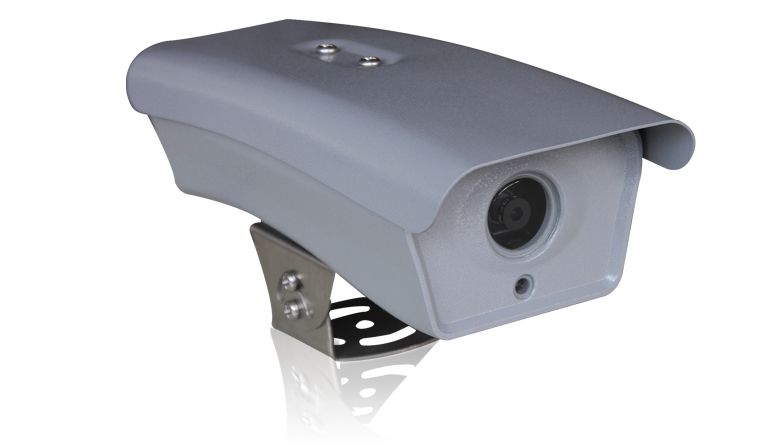

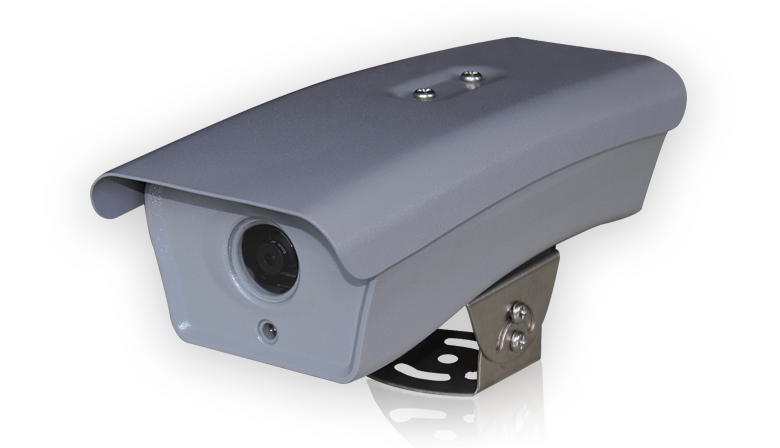

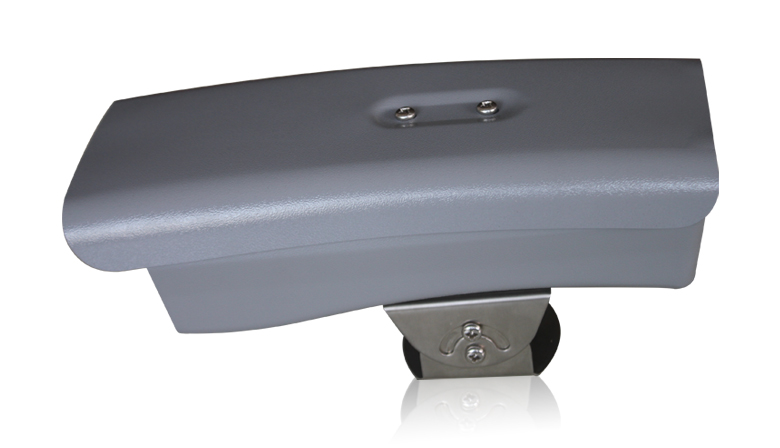

NobTra AI traffic detection camera is an integrated video traffic information collection device suitable for outdoor environments. It collects traffic data, detects traffic vehicles, and optimizes traffic signal control systems in highways, tunnels, urban intersections and sections.

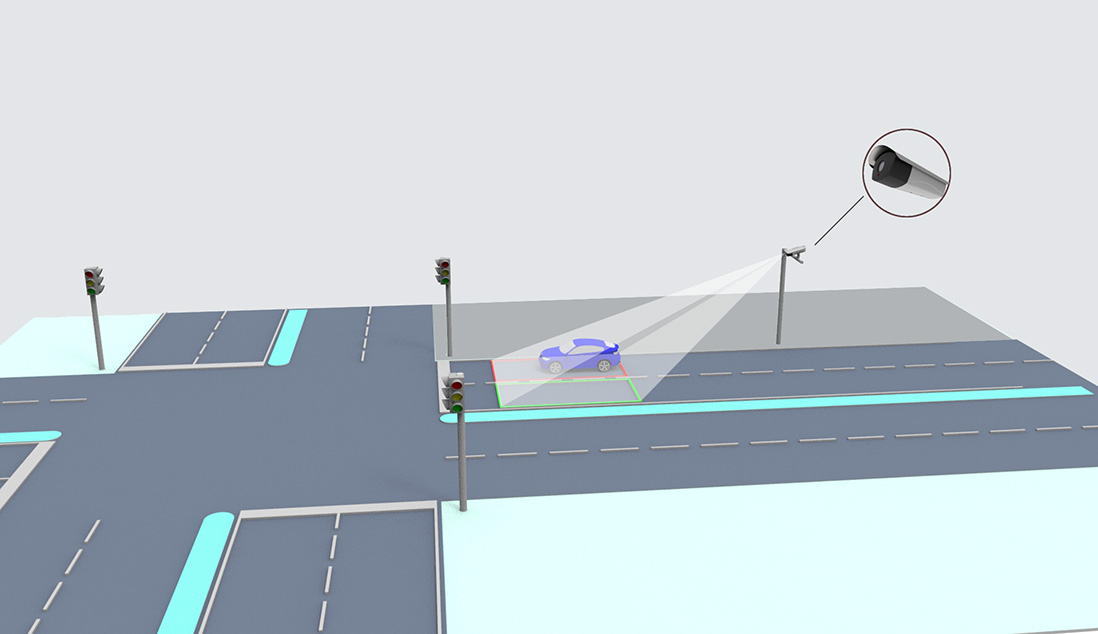

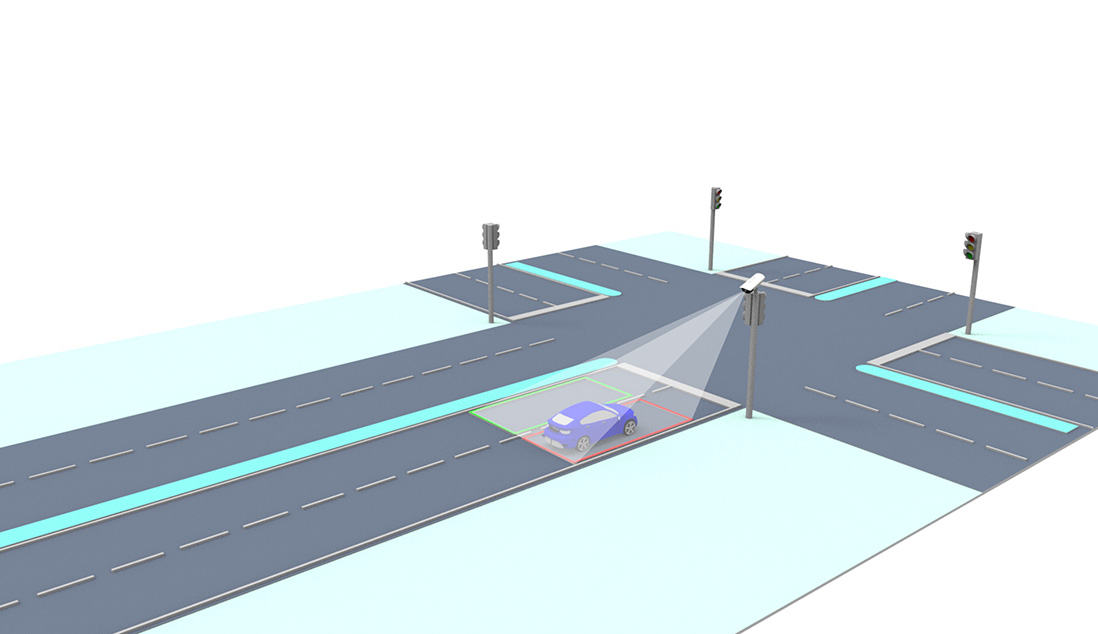

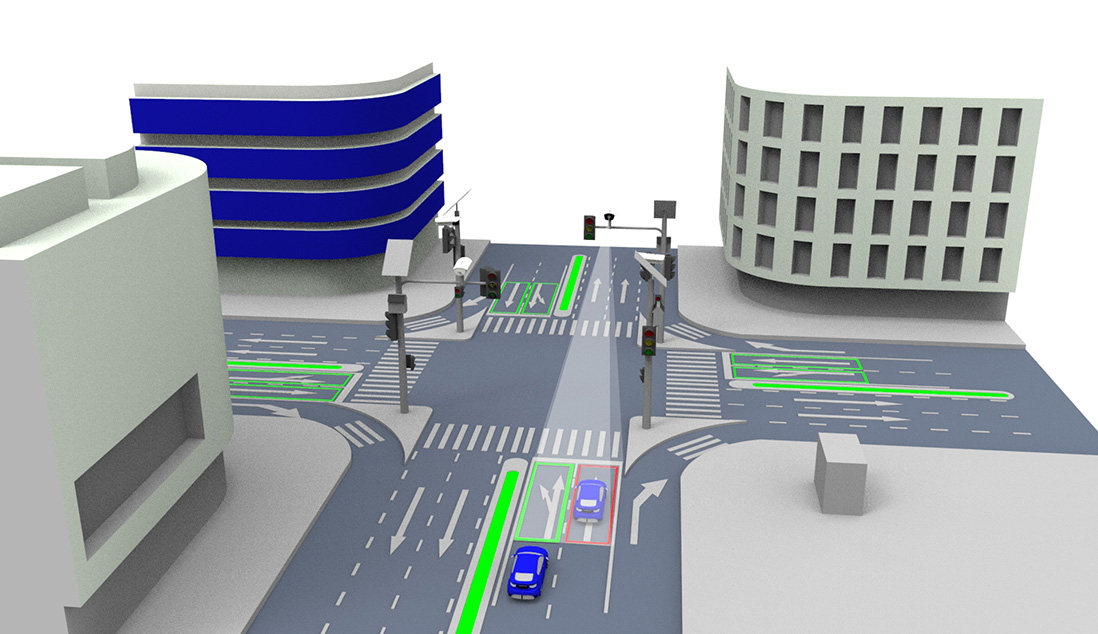

The traffic flow detection camera adopts an advanced product architecture integrating an industrial camera module and a video detection module, and integrates image acquisition and video detection technology. The traffic flow collection camera can be installed on the poles such as signal lights or street lights at the intersection, road section, etc., and realizes the collection and monitoring of many 4 lane traffic information. At the same time, it pro vides high-definition surveillance video all the way.
- Features:
Direct visual verification of the existence of the area. ATCD series enables you to pinpoint and verify the vehicle presence detection area.
As these areas appear on video images, you can easily relocate these areas as traffic conditions change.areas appear on video images, you can easily relocate these areas as traffic - Key functional:
Counting,can exported the vehicle data/day (HTML format) Vehicle type: small car,bus, truck, human, motorcycle, bicycle Road vehicle detection Video Transmission, and Traffic Monitoring - Key benefits:
Integration of small size (with camera & controller)
Wide dynamic, high sensitivity
Non-intrusive ground installation
Adapted to day and night
Real-time verification and monitoring
Real-time traffic view Ultra-low power consumption, suitable for solar power supply.
-
Key functional:
- Road vehicle detection
- Video Transmission, Queue Detection, and Traffic Monitoring (TCD-8 Only)
-
Key benefits:
- Integration of small size (with camera & controller)
- Wide dynamic, high sensitivity
- Non-intrusive ground installation
- Adapted to day and night
- Real-time verification and monitoring (TCD-8 Only)
- Real-time traffic view (TCD-8 Only)
| System Overview | NBTCD-8 |
|---|---|
| Detection Functionalities | Vehicle presence + data+ video |
| # Detection Zones | 8 |
| # Detection Outputs | 8 via 485 & Ethernet & wireless |
| Resolution | 640x480 pixels |
| Frame rate | 20 FPS |
| Lens Types Focal Distance Detection Distance | Wide Angle 2.8mm 0-30m Narrow Angle 6.0mm 15-75m |
| Mounting Height | 3,5-12m |
| CMOS type | 1/2.8” color |
| Compression | MJPEG,H.264 |
| Material | Aluminum |
| Dimensions | Vertically mounted 42 cm x 17 cm x 13 cm, Horizontally mounted 23 cm x 38 cm x 13 cm |
| Sunshield | Optional |
| Operating voltage | 12-42VAC |
| IP Address | Yes |
| Communication PC - Sensor | Interface & Via Ethernet |
| Interface(s) | 485、Wireless、Ethernet |
| PC Tool for Setup | Traffic Configuration Tool |
| EMC | Electromagnetic Compatibility 2004/108/EG |
| FCC | FCC Part 15 Class A |
| Temperature Range | -30C to +70C |
| Materials | Weatherproof(UV-resistant) |
| Protection grade | Housing = IP67 |
| TCD | Lens type | Focal distance | Detection distance |
|---|---|---|---|
| TCD-8F28 | Wide | 2.8 mm | 0 - 30 m |
| TCD-8F60 | Narrow | 6.0 mm | 15 - 75 m |
