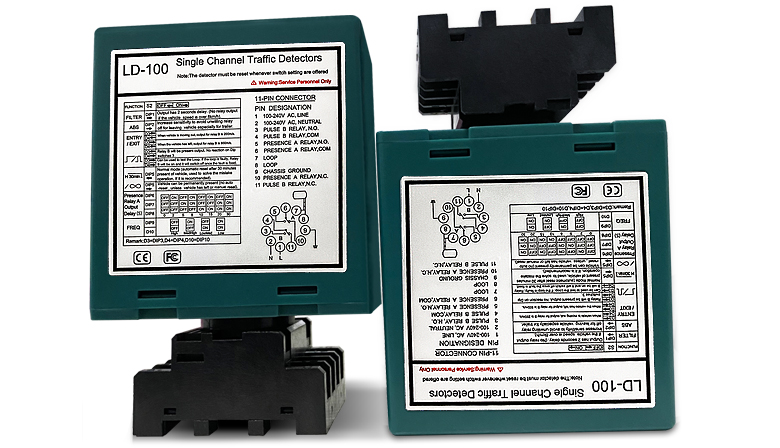

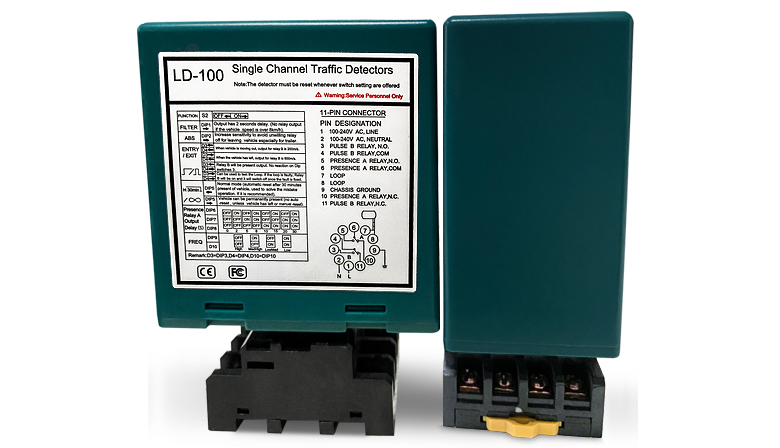

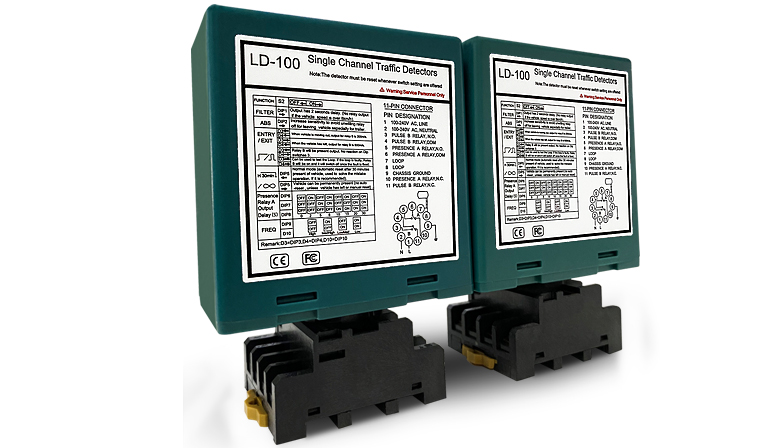

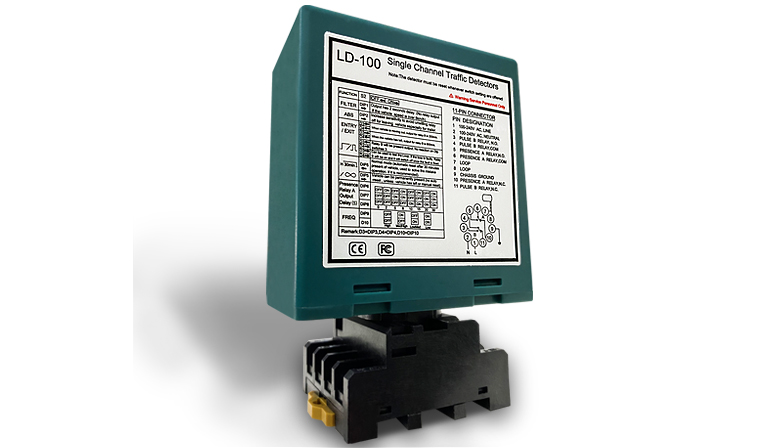

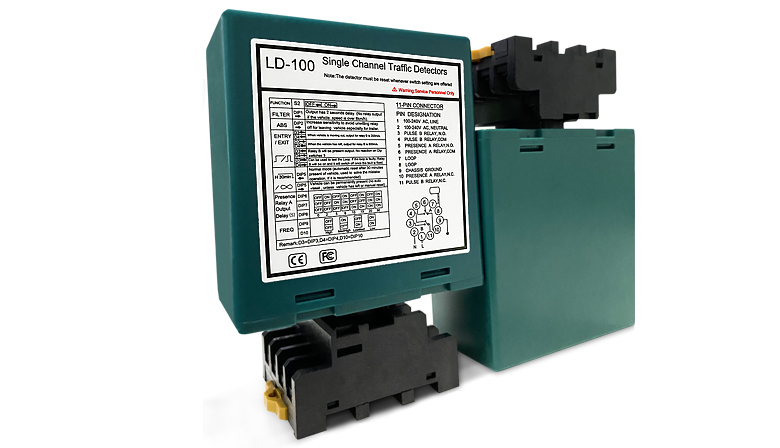

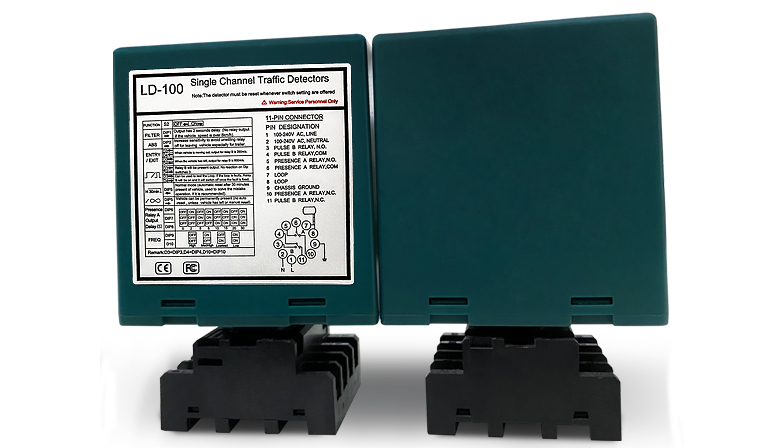

Vehicle loop detector
Four step selectable Vehicle loop detector
( 2 Years Warranty Vehicle loop detector )
Features/Benefits
Specifications

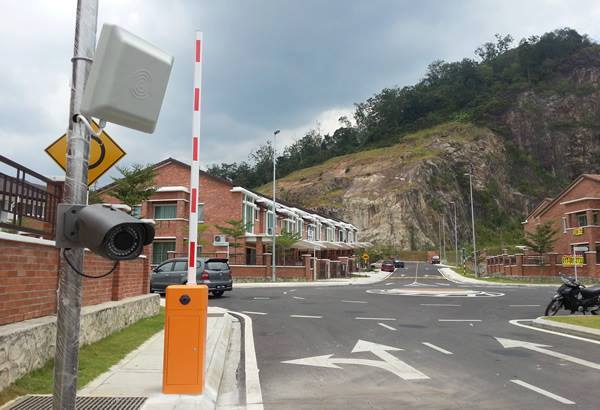

Project
Download
- Four step selectable frequency(20-80KHz)
- Slef-tuning rang: 20-2000uH
- Sensitivity: 16 levels are adjustable
- Response time: 10-90 ms
- Connection: 11-pin submarginal type (86cp 1)
- Relay output: 2 relays, users configurable as presences or pulse output, normally open(N/ON) contact.
Customer Reviews：
| Model: NBLD100 | |
|---|---|
| Self-turning range: | 20-2000uh |
| Voltage: | 12-24VDC or 85-240VAC |
| Relay output: | presence relay/fault relay |
| Working temperature: | -40℃ - +70℃ |
| Frequency: | 4 steps switch, 20-80KHz |
| Response time: | turn on 10-90MS, turn off 10-90NS |
| Reset: | reset by push button on front of enclosure |
| Humidity: | up to 95% relative humdiity without consideration |
| Sensitivity: | 16 ways selectable, highest: 0.010% DL/L, Lowest: 2.56% DL/L |
| Loop wire: | more than 10 meters requires the use of a 2 core shielded cable, do not exceed 200 meters distance between control box and loop |
| Size: | 75mm*43mm*110mm |
