Traffic Control Solution Provider

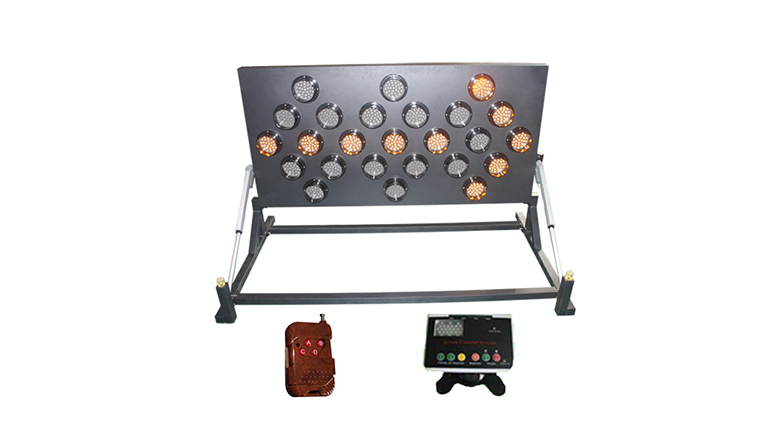

LED Arrow board traffic light
LED Arrow board traffic light
( 2 Years Warranty LED Arrow board traffic light )
Features/Benefits
Specifications

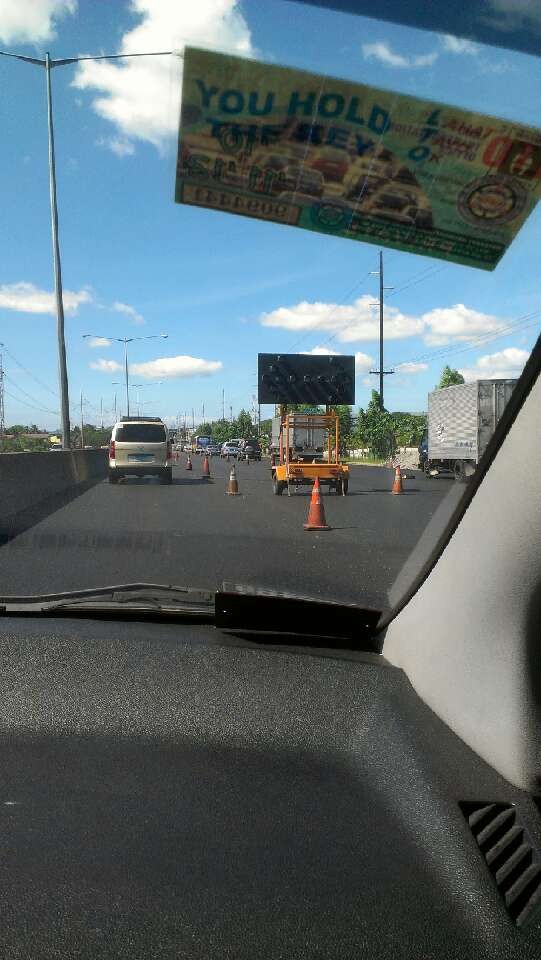

Project
Download
- LED lamps with patented mirror technology
- Visibility up to 1 mile
- Visual indication of arrow modes on controller
- Low vehicle battery and short circuit condition
- Auto up/down motor function
- Working modes: 25bulls-5 flashing modes, 7 sequential modes 15bulls-5 flashing modes, 2 sequential modes
- View distance: >1000m
| size | 1524*760*70mm | 1200*600*55mm | ||
| Power supply | battery@12VDC | solar | battery@12VDC | solar |
| Model# | NBAB-VIP25/15 | NBAB-S25/15 | NBAB-VIP25/15 | NBAB-S25/15S |
| Number of bulbs | 25/15 | |||
| LEDs per bulb | 9leds | |||
| Power consumption | Max.9.6w/Min.2w | |||
| Lens diameter | 85mm | |||
| Gross Weight | 61kgs | 66kgs | 37kgs | 42kgs |
| Packing size(cm) | 166*89*23 | 166*89*25 | 134*73*26 | 134*70*23 |
| Remote wireless controller | √ | √ | √ | √ |
| Wired car controller | √ | optional | √ | optional |
| Arrow board housing | Cold rolled steel | |||
| Bracket | optional | |||
| Auto up/down actuators | √ | X | √ | X |
| Solar panel | X | 10W@12VDC | X | 10W@12VDC |
| Rechargeable lithium battery | X | 13.2ah | X | 13.2ah |
