Traffic Control Solution Provider
LED intelligent traffic signal light

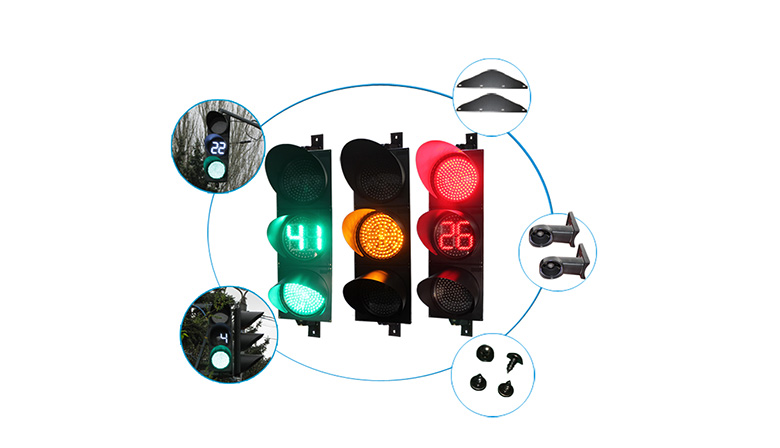

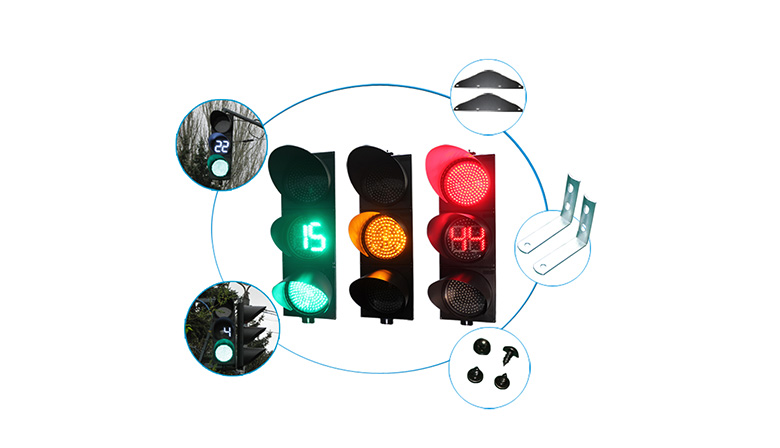

300mm Energy-saving intelligent traffic lights
( 2 Years Warranty intelligent traffic lights )
Features/Benefits
Specifications

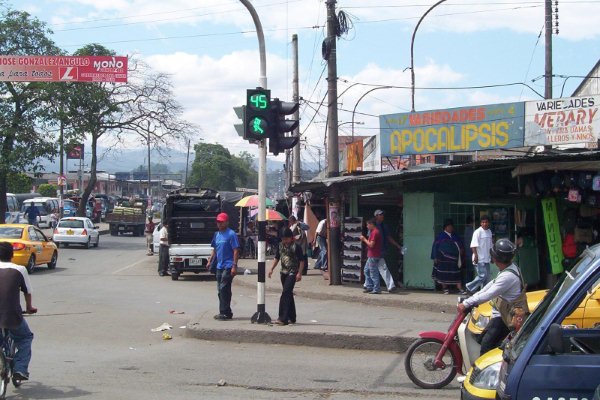

Project
Download
- Lower consumption
- Fashion deisgn
- Large viewing angle
- Long life time
- Waterproof IP 65
- Speical optical system, color equality
- Far viewing distance
- Accord with international relational standard
| Model: NBJD312-2 + DJS321-RG | |||||
|---|---|---|---|---|---|
| Items | Parameters | ||||
| Size | 300mm | 300mm | 300mm | 300mm | 300mm |
| Color | Red | Yellow | Red | Green | Green |
| LEDs (pcs) | 168 | 122 | 112 | 112 | 168 |
| Wavelength | 625±5 | 590±5 | 625±5 | 505±2 | 505±2 |
| Module shape | Round | Round | Round | Round | Round |
| Power consumption (W) | <12 | <11 | <10 | <10 | <12 |
| Housing material | PC ( UV-stabilized polycarbonate) | ||||
| Voltage (V) | 12-24V DC 100-277V AC | ||||
| Luminance (cd) | 800cd | ||||
| Operating temperature (℃） | -30℃~+ 60 ℃ | ||||
| Insulation resistance | ≥2M | ||||
| Total harmonic distortion | <20% | ||||
| IP rate | IP65 | ||||
