Traffic Control Solution Provider

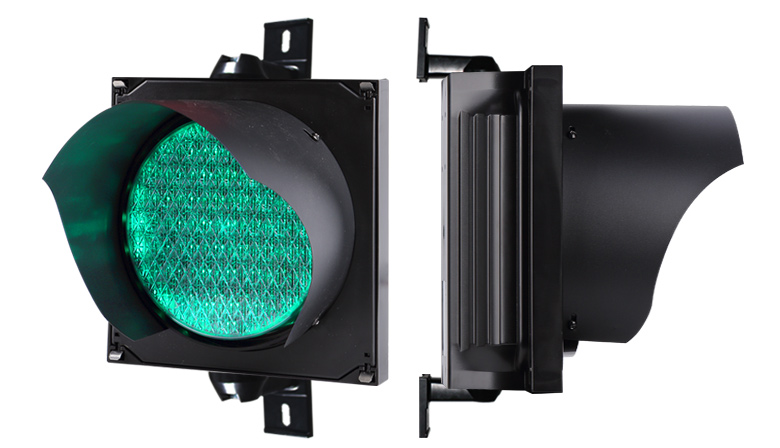

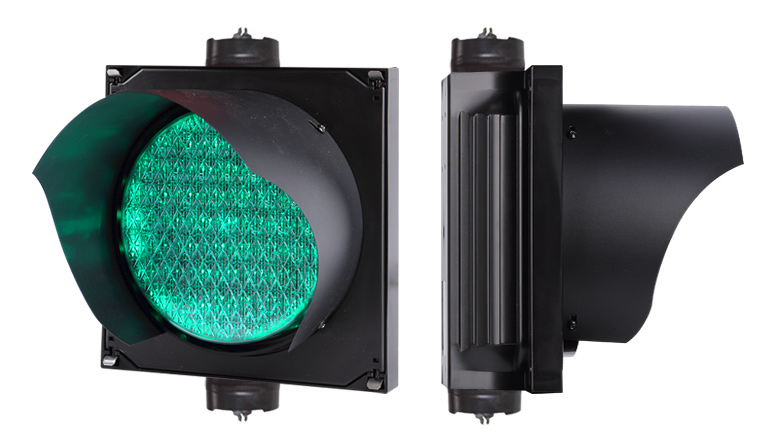

200mm Green full ball traffic light
200mm Green full ball traffic light IP65
( 2 Years Warranty led traffic signal lights )
Features/Benefits
Specifications
Project
Download
- Energy saving, long life
- Environmental adaptability
- Short switching times between different colors
- Variety of installation to fit for the different environments
- Reasonable structure, atmosphere, simple and beautiful appearance
- Strong protective properties (waterproof, dustproof, shock)
- Fast method using the mold assembly, maintenance and replacement parts quickly abnormalities
- Visual effects, color uniformity,far visual distance
| Moel: NBJD211F-G | |
|---|---|
| Items | Parameters |
| Size | 200mm |
| Color | Green |
| LEDs (pcs) | 61 |
| Wavelength | 505±2 |
| Module shape | Round |
| Power consumption (W) | <7 |
| Housing material | PC ( UV-stabilized polycarbonate) |
| Voltage (V) | 12-24V DC 100-277V AC |
| Luminance (cd) | 800cd |
| Operating temperature (℃） | -30℃~+ 60 ℃ |
| Insulation resistance | ≥2M |
| Total harmonic distortion | <20% |
| IP rate |
IP65 |
200mm Green full ball traffic light project
