Traffic Control Solution Provider

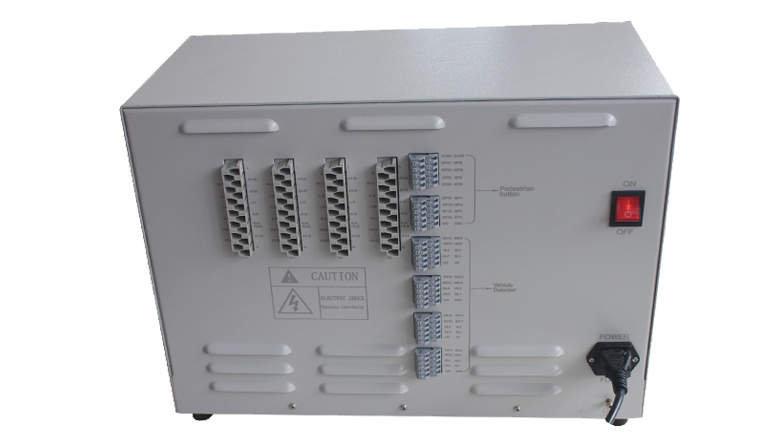

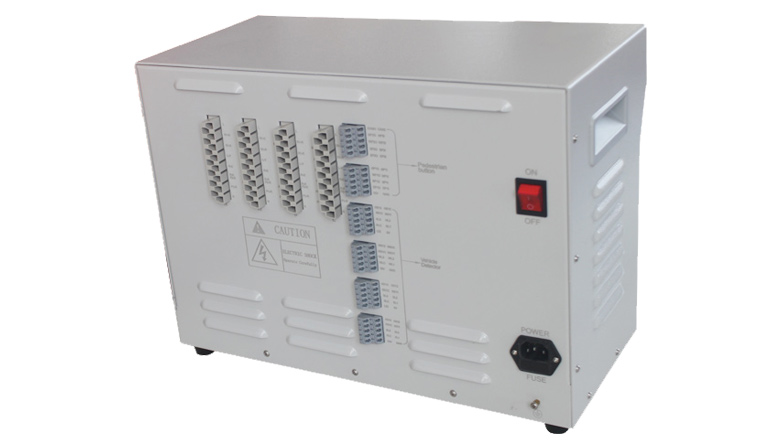

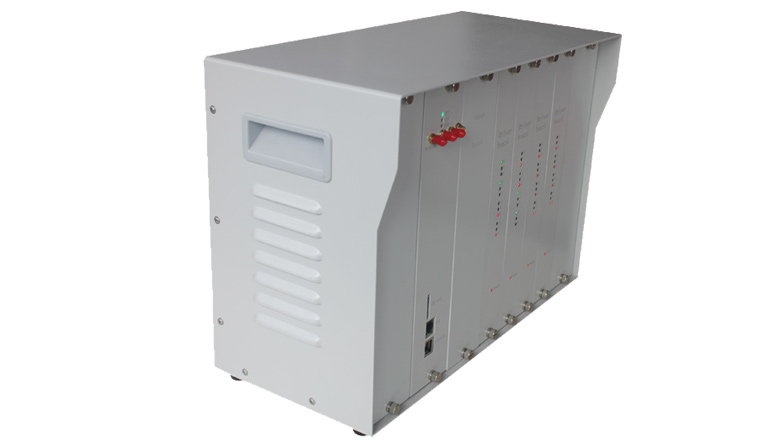

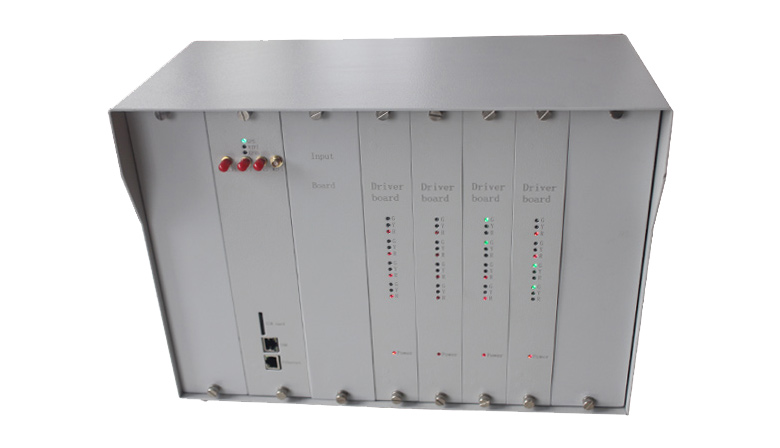

2nd generation main power traffic light controller system
Intelligent traffic light controller system
( 5 Years Warranty 2nd Generation main power traffic light controller system )
Features/Benefits
Specifications

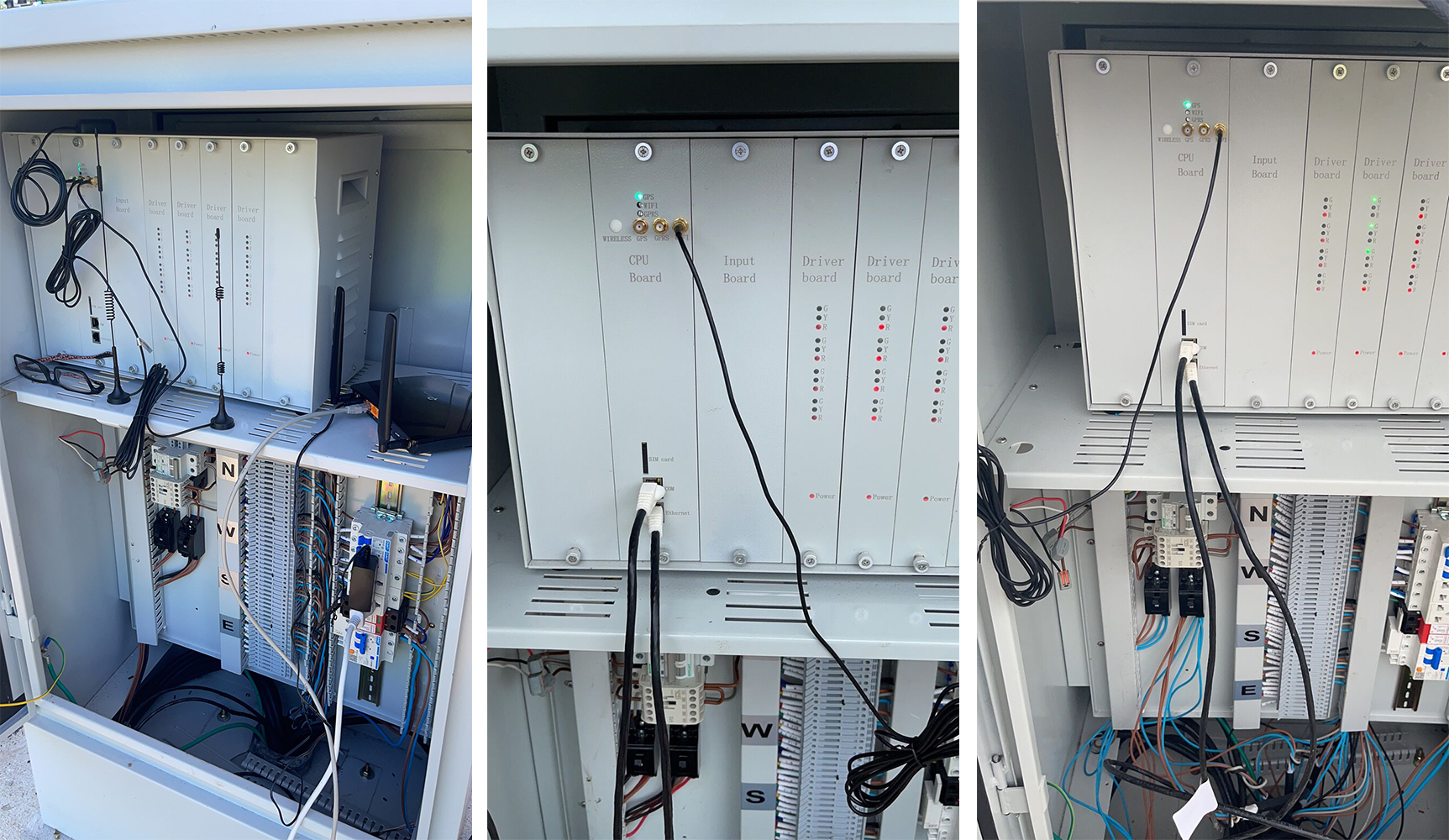

Project
Download
-
Mobile phone APP to remote control the controller by wifi
GPRS/Ethernet internet communicate to traffic management center control the controller by software. LAN, WLAN on TCP/IP.
- GPS Real-time clock for wireless sync available
- Technique of PWM to control the brightness of the light
- Green conflict setting and detection function
- Fuse protected driver output PSU with LED indicators Traffic Manual(force flashing mode) can work for you.
- Lamp faliure detect function, can detect the lamp short circiut, open circuit, output short/open circuit.
- Vehicle loop detect function Wireless pedestrian push button 32 digits ARM CPU.
-
1 master and 4 slave controller work together by wireless
1%-100% energy saving adjustment, automatic brightness control (time,voltage)
- Fault diagnose function for open or close.
| 2nd generation main power traffic light controller system | |
|---|---|
| Type | NBTSC-200 |
| Working voltage | 120VAC/230VAC |
| Standby power | <10W |
| Signal light output | 16 signal group,16A each |
| Pedestrian button signal input | 8 sensor input |
| Ground sense signal input | 8 sensor input |
| Time error | annual error<2.5munutes(under the condition lf 25±1 ℃ ) |
| Power-down data storage | 10 years |
| Working temperature | -40-70 ℃ |
| Working Environment | 0 to 55 ℃ |
