1.Reduce overall operating & mainenance costs:Energy saving:90% reduction in power consumption vs incandescent.
2. Reliability & traffic safety:·Improved visibility over life of the product Reduces emergency lamps outs Design minimizes sun phantom effects.
3.Easy to install into existing signal enclosure.4.CE,RoHs,ISO9001,IP66,IP67 Certification.

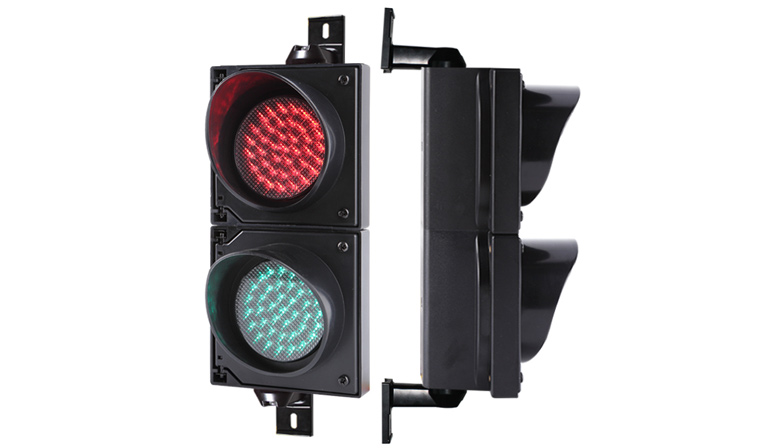

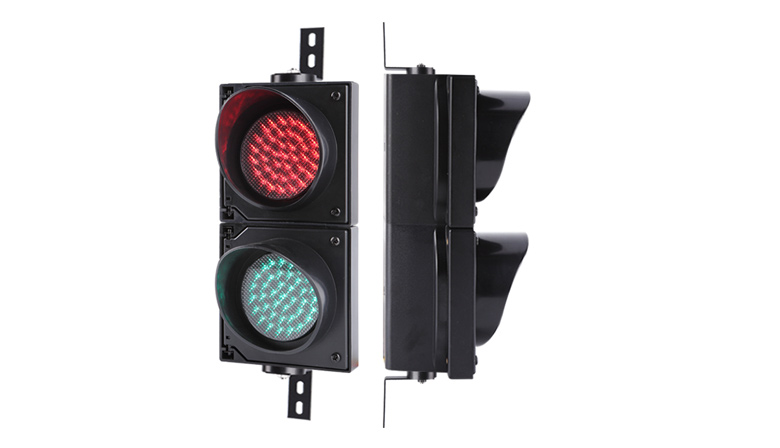

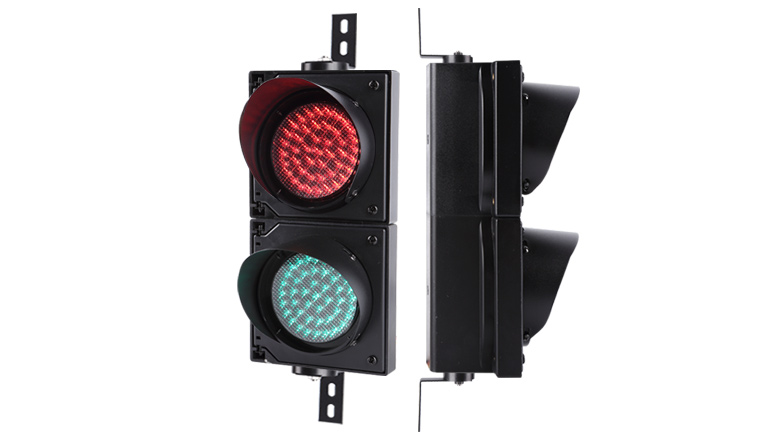

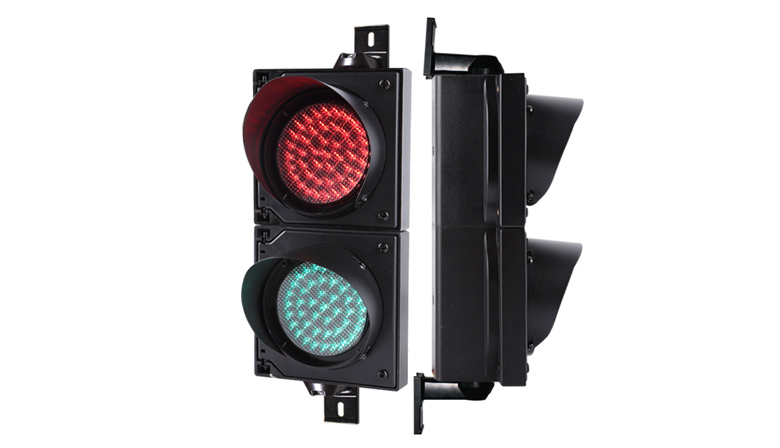

| Model: NBJD112F-39 100mm traffic signal lights,led traffic light | ||
|---|---|---|
| Items | Parameters | |
| Size | 100mm | 100mm |
| Color | Red | Green |
| LEDs (pcs) | 39 | 39 |
| Wavelength | 625±5 | 505±2 |
| Module shape | Round | Round |
| Power consumption (W) | <5 | <3 |
| Housing material | PC ( UV-stabilized polycarbonate) | |
| Voltage (V) | 12-24V DC 85-265V AC | |
| Luminance (cd) | 100cd | |
| Operating temperature (℃） | -30℃~+ 60 ℃ | |
| Insulation resistance | ≥2M | |
| Total harmonic distortion | <20% | |
| IP rate | IP65 | |
| Visor | PC or Aluminum | |
| Bracket | L-bracket or C-bracket | |

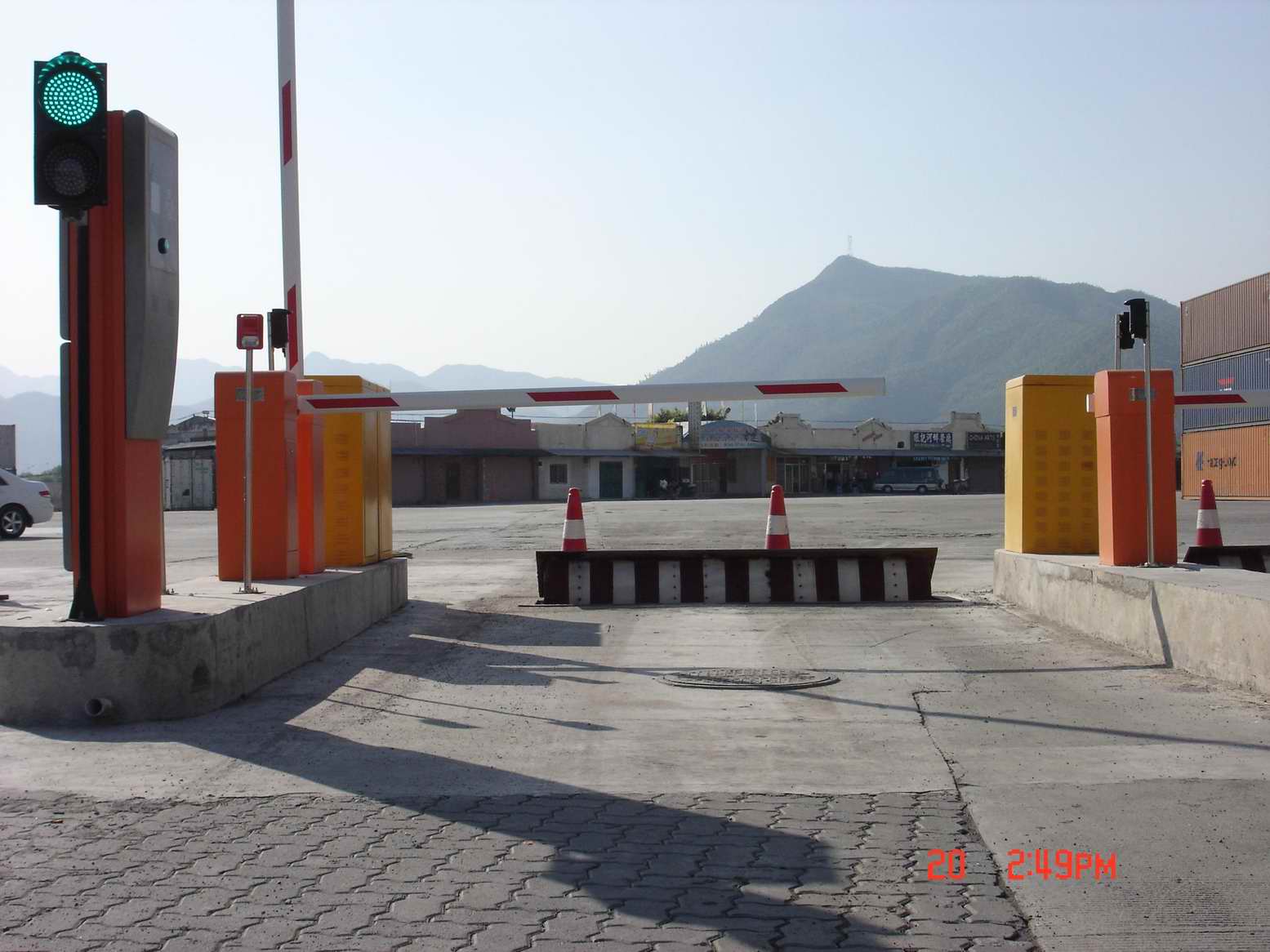

100mm traffic signal project
